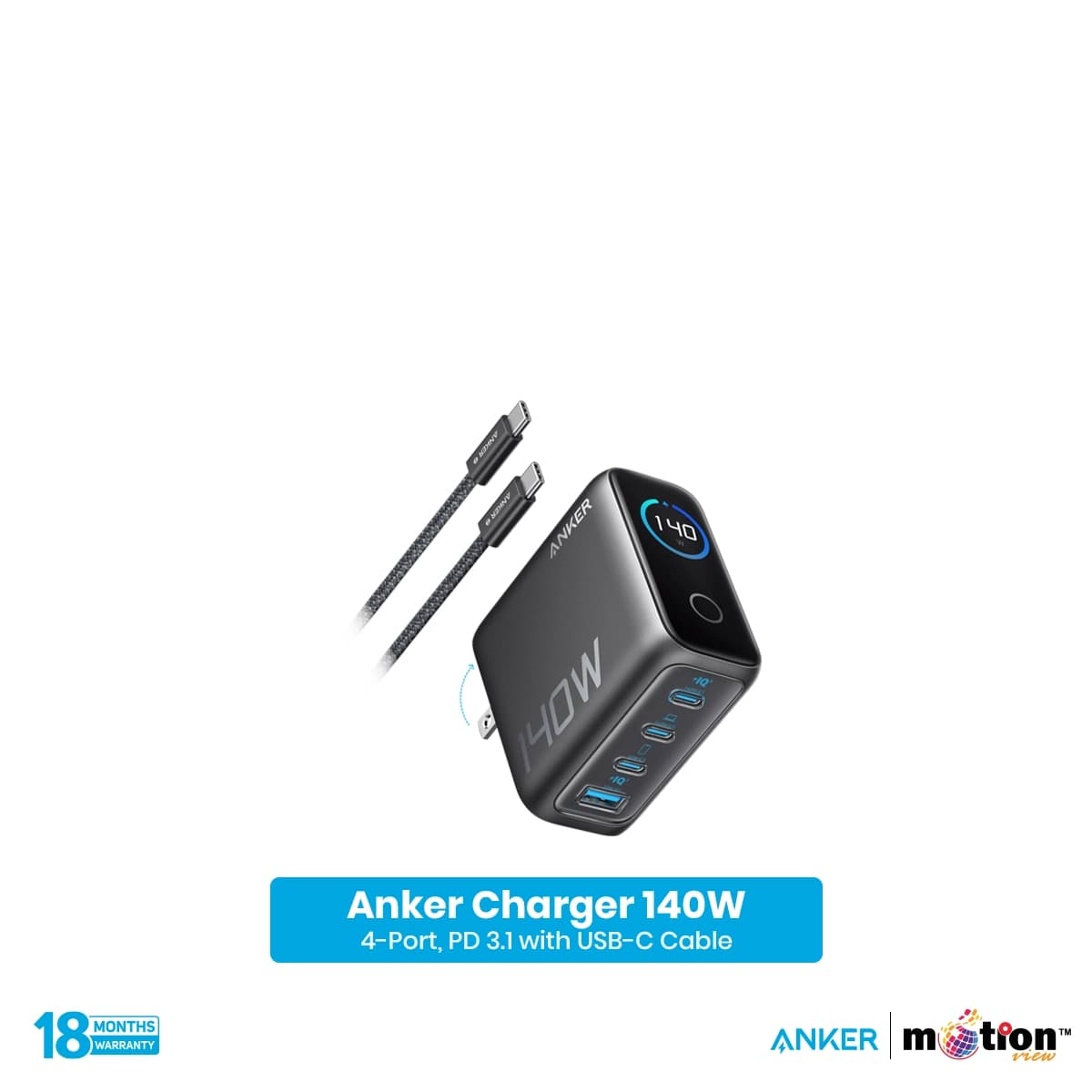

Anker Charger (140W, 4-Port, PD 3.1) with USB-C Cable

Technical Specifications

• Product Name: Anker Charger (140W, 4-Port, PD 3.1)

• Model Number: B2697

• Total Output: 140W Max (134W when charging 4 devices simultaneously)

• Charging Technology: GaN (Gallium Nitride) for efficient, compact power delivery

• Display: High-definition touchscreen showing power, port status, and temperature

• Input: 100-240V~, 50/60Hz, 2.6A Max (universal voltage)

• Port Configuration: 4 Ports (3× USB-C + 1× USB-A)

• Output Specifications:

  • Single Port Use:

    • USB-C1: 9V⎓3A / 15V⎓3A / 20V⎓5A / 28V⎓5A (140W Max)

    • USB-C2: 9V⎓3A / 15V⎓3A / 20V⎓5A / 28V⎓5A (140W Max)

    • USB-C3: 5V⎓3A / 9V⎓3A / 15V⎓2.65A / 20V⎓2A (40W Max)

    • USB-A1: 5V⎓3A / 9V⎓2A / 12V⎓1.5A / 10V⎓2.25A / 11V⎓3A (33W Max)

• Multi-Port Output Combinations:

  • USB-C1 + C2: 70W + 70W

  • USB-C1/C2 + C3: 100W + 40W

  • USB-C1/C2 + A1: 100W + 33W

  • USB-C3 + A1: 24W

  • USB-C1 + C2 + C3: 65W + 45W + 30W

  • USB-C1 + C2 + A1: 65W + 45W + 30W

  • USB-C1/C2 + (C3 + A1): 100W + 24W

  • USB-C1 + C2 + (C3 + A1): 65W + 45W + 24W

• Design Features:

  • Weight: 9.7 oz (275g)

  • Stacked design with anti-slip covered pins

  • Foldable plug for portability

  • Generous spacing between ports

• Safety Features: AI-driven intelligent temperature control, over-temperature protection

• Compatibility:

  • iPhones: 16/15/14/13/12/SE Series

  • Samsung: S24/S23 Series

  • Google Pixel 8/7

  • MacBook Air/Pro Series

  • HP Chromebook 14

  • Steam Deck, DJI Mavic 3, AirPods, and more

• Notes:

  • Requires E-Marker cable for speeds above 100W

  • May not charge Dell XPS 15 (9500/9510), Alienware X14, or Dell Mobile Precision 5570 at full speed

  • Features automatic power reduction under extended high-temperature conditions
